Shaker Gray

Essential Collection · Premium Line · About Shaker Gray cabinets in San Antonio →

The Premium line uses two different cabinet constructions. The Essential and Classic collections are built to "Premium Grade": a 1/2" cabinet-grade plywood box with finished exteriors in a matching color, a 3/4" solid wood painted face frame, solid wood dovetail drawer boxes at 2 1/2" depth, concealed undermount full-extension soft-close glides, and 6-way adjustable soft-close hinges, with clear UV-coated natural plywood interiors.

How this cabinet is built (12 specs)

Cabinet box: 1/2" cabinet-grade plywood
Face frame: 3/4" solid wood (painted on Essential/Classic)
Doors & drawer fronts: full overlay, five-piece, solid wood with MDF center panel
Drawer box: solid wood, dovetail construction — 2 1/2" depth on Essential/Classic, 3 1/8" depth on Charm/Double Shaker
Drawer glides: concealed undermount, full extension, soft-close
Hinges: 6-way adjustable stainless-steel with soft-close; door bumpers included
Shelves: 3/4" thick plywood with front edge banding
Interior finish: clear UV-coated natural plywood
Exterior finish: matching color exterior on Essential/Classic; clear UV-coated natural plywood on Charm/Double Shaker
Accessories included: door bumper, metal shelf pins, metal clips, L bracket for base cabinets
Packaging: one box per cabinet (Essential/Classic); two packages — universal box + front set (Charm/Double Shaker)
Certifications: TSCA VI, KCMA, CARB2, NGBS Green

How to order: give us the style code GR plus the item number — e.g. GR-W1212GD. All dimensions below are inches, listed W × H × D, exactly as published in the 2026 spec book.

Design your kitchen free → Get an itemized quote Spec book PDF

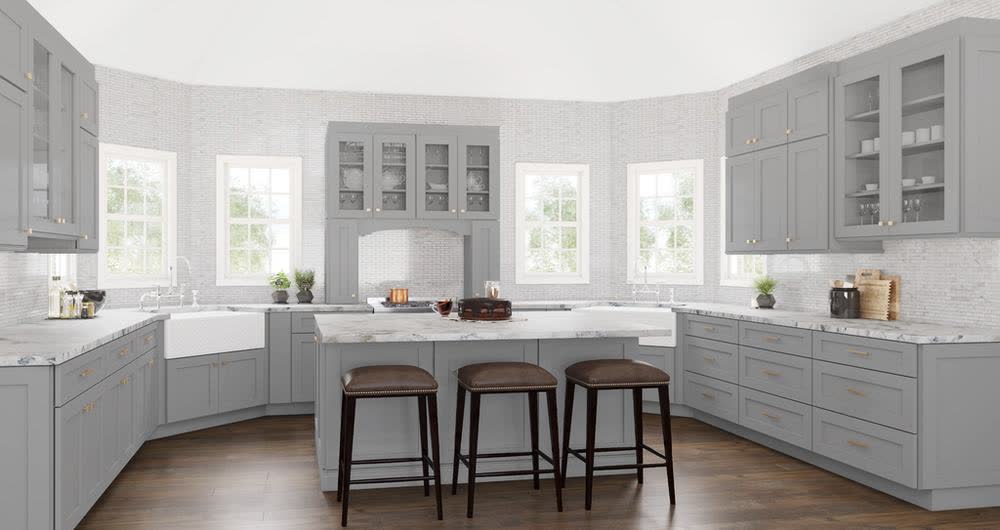

Shaker Gray kitchen cabinets shown in a finished kitchen — gray shaker doors — Shaker Gray in a finished kitchen. Manufacturer photo of the gray shaker finish — your kitchen is built to your own measurements. Get a free itemized estimate →

Wall Cabinets 115 sizes

Wall Cabinet Single Glass Door

12"H

GR-W1212GD
Cabinet12 × 12 × 12
Door11 1/2 × 11 × 3/4
GR-W1512GD
Cabinet15 × 12 × 12
Door14 1/2 × 11 × 3/4
GR-W1812GD
Cabinet18 × 12 × 12
Door17 1/2 × 11 × 3/4
GR-W2112GD
Cabinet21 × 12 × 12
Door20 1/2 × 11 × 3/4

Clear glass & color matched interior - SW, GR, SE, NB, CW, AC, AW
Frosted glass & natural interior - IB, AR, SA, TC, DDW, DSG

Wall Cabinet Double Glass Doors

12"H

GR-W2412GD
Cabinet24 × 12 × 12
Door11 3/4 × 11 × 3/4
GR-W2712GD
Cabinet27 × 12 × 12
Door13 1/4 × 11 × 3/4
GR-W3012GD
Cabinet30 × 12 × 12
Door14 3/4 × 11 × 3/4
GR-W3312GD
Cabinet33 × 12 × 12
Door16 1/4 × 11 × 3/4
GR-W3612GD
Cabinet36 × 12 × 12
Door17 3/4 × 11 × 3/4

Clear glass & color matched interior - SW, GR, SE, NB, CW, AC, AW
Frosted glass & natural interior - IB, AR, SA, TC, DDW, DSG

Wall Cabinet Double Doors

12"H

GR-W3012
Cabinet30 × 12 × 12
Door14 3/4 × 11 × 3/4
GR-W3312
Cabinet33 × 12 × 12
Door16 1/4 × 11 × 3/4
GR-W3612
Cabinet36 × 12 × 12
Door17 3/4 × 11 × 3/4

No shelf

Wall Cabinet Double Doors

15"H

GR-W3015
Cabinet30 × 15 × 12
Door14 3/4 × 14 × 3/4
⚠ Verify with our team
GR-W3315
Cabinet33 × 15 × 12
Door16 1/4 × 14 × 3/4
⚠ Verify with our team
GR-W3615
Cabinet36 × 15 × 12
Door17 3/4 × 14 × 3/4
⚠ Verify with our team

No shelf

Wall Cabinet Double Doors

18"H

GR-W2418
Cabinet24 × 18 × 12
Door11 3/4 × 17 × 3/4
GR-W3018
Cabinet30 × 18 × 12
Door14 3/4 × 17 × 3/4
⚠ Verify with our team
GR-W3318
Cabinet33 × 18 × 12
Door16 1/4 × 17 × 3/4
⚠ Verify with our team
GR-W3618
Cabinet36 × 18 × 12
Door17 3/4 × 17 × 3/4
⚠ Verify with our team

No shelf

Wall Cabinet Double Glass Doors

18"H

GR-W3018GD
Cabinet30 × 18 × 12
Door14 3/4 × 17 × 3/4
⚠ Verify with our team

Clear glass & color matched interior - SW, GR, SE, NB, CW, AC, AW
Frosted glass & natural interior - IB, AR, SA, TC, DDW, DSG

Wall Cabinet Double Doors

24"H

GR-W3024
Cabinet30 × 24 × 12
Door14 3/4 × 23 × 3/4
GR-W3324
Cabinet33 × 24 × 12
Door16 1/4 × 23 × 3/4
GR-W3624
Cabinet36 × 24 × 12
Door17 3/4 × 23 × 3/4

One adjustable shelf

Wall Cabinet Single Door

30"H

GR-W0930
Cabinet9 × 30 × 12
Door8 1/2 × 29 × 3/4
GR-W1230
Cabinet12 × 30 × 12
Door11 1/2 × 29 × 3/4
GR-W1530
Cabinet15 × 30 × 12
Door14 1/2 × 29 × 3/4
GR-W1830
Cabinet18 × 30 × 12
Door17 1/2 × 29 × 3/4
GR-W2130
Cabinet21 × 30 × 12
Door20 1/2 × 29 × 3/4

Two adjustable shelves

Wall Cabinet Single Glass Door

30"H

GR-W1530GD
Cabinet15 × 30 × 12
Door14 1/2 × 29 × 3/4
GR-W1830GD
Cabinet18 × 30 × 12
Door17 1/2 × 29 × 3/4

Clear glass & color matched interior- SW, GR, SE, NB, CW, AC, AW
Frosted glass & natural interior - IB, AR, SA, TC, DDW, DSG
Two adjustable shelves

Wall Cabinet Double Doors

GR-W2430
Cabinet24 × 30 × 12
Door11 3/4 × 29 × 3/4
GR-W2730
Cabinet27 × 30 × 12
Door13 1/4 × 29 × 3/4
GR-W3030
Cabinet30 × 30 × 12
Door14 3/4 × 29 × 3/4
GR-W3330
Cabinet33 × 30 × 12
Door16 1/4 × 29 × 3/4
GR-W3630
Cabinet36 × 30 × 12
Door17 3/4 × 29 × 3/4
GR-W3930
Cabinet39 × 30 × 12
Door19 1/4 × 29 × 3/4

Two adjustable shelves

Wall Cabinet Double Glass Doors

30"H

GR-W2430GD
Cabinet24 × 30 × 12
Door11 3/4 × 29 × 3/4
GR-W3030GD
Cabinet30 × 30 × 12
Door14 3/4 × 29 × 3/4

Clear glass & color matched interior- SW, GR, SE, NB, CW, AC, AW
Frosted glass & natural interior - IB, AR, SA, TC, DDW, DSG
Two adjustable shelves

Wall Cabinet Single Door

36"H

GR-W0936
Cabinet9 × 36 × 12
Door8 1/2 × 35 × 3/4
GR-W1236
Cabinet12 × 36 × 12
Door11 1/2 × 35 × 3/4
GR-W1536
Cabinet15 × 36 × 12
Door14 1/2 × 35 × 3/4
GR-W1836
Cabinet18 × 36 × 12
Door17 1/2 × 35 × 3/4
GR-W2136
Cabinet21 × 36 × 12
Door20 1/2 × 35 × 3/4

Two adjustable shelves

Wall Cabinet Single Glass Door

36"H

GR-W1536GD
Cabinet15 × 36 × 12
Door14 1/2 × 35 × 3/4
GR-W1836GD
Cabinet18 × 36 × 12
Door17 1/2 × 35 × 3/4

Clear glass & color matched interior- SW, GR, SE, NB, CW, AC, AW
Frosted glass & natural interior - IB, AR, SA, TC, DDW, DSG
Two adjustable shelves

Wall Cabinet Double Doors

36"H

GR-W2436
Cabinet24 × 36 × 12
Door11 3/4 × 35 × 3/4
GR-W2736
Cabinet27 × 36 × 12
Door13 1/4 × 35 × 3/4
GR-W3036
Cabinet30 × 36 × 12
Door14 3/4 × 35 × 3/4
GR-W3336
Cabinet33 × 36 × 12
Door16 1/4 × 35 × 3/4
⚠ Verify with our team
GR-W3636
Cabinet36 × 36 × 12
Door17 3/4 × 35 × 3/4

Two adjustable shelves

Wall Cabinet Double Glass Doors

36"H

GR-W2436GD
Cabinet24 × 36 × 12
Door11 3/4 × 35 × 3/4
GR-W3036GD
Cabinet30 × 36 × 12
Door14 3/4 × 35 × 3/4

Clear glass & color matched interior- SW, GR, SE, NB, CW, AC, AW
Frosted glass & natural interior - IB, AR, SA, TC, DDW, DSG
Two adjustable shelves

Wall Cabinet Single Door

42"H

GR-W0942
Cabinet9 × 42 × 12
Door8 1/2 × 41 × 3/4
GR-W1242
Cabinet12 × 42 × 12
Door11 1/2 × 41 × 3/4
GR-W1542
Cabinet15 × 42 × 12
Door14 1/2 × 41 × 3/4
GR-W1842
Cabinet18 × 42 × 12
Door17 1/2 × 41 × 3/4
⚠ Verify with our team
GR-W2142
Cabinet21 × 42 × 12
Door20 1/2 × 41 × 3/4

Three adjustable shelves

Wall Cabinet Single Glass Door

42"H

GR-W1542GD
Cabinet15 × 42 × 12
Door14 1/2 × 41 × 3/4
GR-W1842GD
Cabinet18 × 42 × 12
Door17 1/2 × 41 × 3/4
⚠ Verify with our team

Clear glass & color matched interior- SW, GR, SE, NB, CW, AC, AW
Frosted glass & natural interior - IB, AR, SA, TC, DDW, DSG
Three adjustable shelves

Wall Cabinet Double Doors

42"H

GR-W2442
Cabinet24 × 42 × 12
Door11 3/4 × 41 × 3/4
GR-W2742
Cabinet27 × 42 × 12
Door13 1/4 × 41 × 3/4
GR-W3042
Cabinet30 × 42 × 12
Door14 3/4 × 41 × 3/4
GR-W3342
Cabinet33 × 42 × 12
Door16 1/4 × 41 × 3/4
⚠ Verify with our team
GR-W3642
Cabinet36 × 42 × 12
Door17 3/4 × 41 × 3/4

Three adjustable shelves

Diagonal Corner Double Glass Door

42"H

GR-W2442GD
Cabinet24 × 42 × 12
Door11 3/4 × 41 × 3/4
GR-W3042GD
Cabinet30 × 42 × 12
Door14 3/4 × 41 × 3/4

Clear glass & color matched interior- SW, GR, SE, NB, CW, AC, AW
Frosted glass & natural interior - IB, AR, SA, TC, DDW, DSG
Three adjustable shelves

Diagonal Corner Wall Glass Door

24"W

GR-DCW2412GD
Cabinet24 × 12 × 12
Door15 1/4 × 11 × 3/4
GR-DCW2430GD
Cabinet24 × 30 × 12
Door15 1/4 × 29 × 3/4
GR-DCW2436GD
Cabinet24 × 36 × 12
Door15 1/4 × 35 × 3/4
GR-DCW2442GD
Cabinet24 × 42 × 12
Door15 1/4 × 41 × 3/4

Clear glass & color matched interior- SW, GR, SE, NB, CW, AC, AW
Frosted glass & natural interior - IB, AR, SA, TC, DDW, DSG
No Shelf
Two adjustable shelves (30"-36")
Three adjustable shelves (42")

Diagonal Corner Wall Single Door

24"W

GR-DCW2430
Cabinet24 × 30 × 12
Door15 1/4 × 29 × 3/4
GR-DCW2436
Cabinet24 × 36 × 12
Door15 1/4 × 35 × 3/4
GR-DCW2442
Cabinet24 × 42 × 12
Door15 1/4 × 41 × 3/4

Two adjustable shelves (30"-36")
Three adjustable shelves (42")

Diagonal Corner Wall Single Glass Door

27"W

GR-DCW2712GD
Cabinet27 × 12 × 15
Door15 1/4 × 11 × 3/4

Clear glass & color matched interior- SW, GR, SE, NB, CW, AC, AW
Frosted glass & natural interior - IB, AR, SA, TC, DDW, DSG
No Shelf

Diagonal Corner Wall Cabinet

27"W

GR-DCW2736
Cabinet27 × 36 × 15
Door14 3/4 × 35 × 3/4
GR-DCW2742
Cabinet27 × 42 × 15
Door15 1/4 × 41 × 3/4

Two adjustable shelves (36")
Three adjustable shelves (42")

Wall Blind Corner Cabinet

30"H

GR-WBC2430
Cabinet24 × 30 × 12
Door9 9/16 × 29 × 3/4
GR-WBC2730
Cabinet27 × 30 × 12
Door12 9/16 × 29 × 3/4
GR-WBC3630
Cabinet36 × 30 × 12
Door21 9/16 × 35 × 3/4
⚠ Verify with our team

Two adjustable shelves
Can pulled for exact fit

Wall Blind Corner Cabinet

36"H

GR-WBC2736
Cabinet27 × 36 × 12
Door12 9/16 × 35 × 3/4

Two adjustable shelves
Can pulled for exact fit

Wall Blind Corner Cabinet

42"H

GR-WBC2442
Cabinet24 × 42 × 12
Door9 9/16 × 41 × 3/4
GR-WBC2742
Cabinet27 × 42 × 12
Door12 9/16 × 41 × 3/4
GR-WBC3642
Cabinet36 × 42 × 12
Door21 9/16 × 41 × 3/4

Two adjustable shelves
Can pulled for exact fit

Angle Wall Cabinet

12"W

GR-AW1230
Cabinet12 × 30 × 12
Door15 3/5 × 29 × 3/4
GR-AW1236
Cabinet12 × 36 × 12
Door15 3/5 × 35 × 3/4
GR-AW1242
Cabinet12 × 42 × 12
Door15 3/5 × 41 × 3/4

Two adjustable shelves
Three adjustable shelves

Microwave Wall Cabinet

30"W

GR-MO3030
Cabinet30 × 30 × 12
Door14 3/4 × 9 1/4 × 3/4
GR-MO3036
Cabinet30 × 36 × 12
Door14 3/4 × 15 1/4 × 3/4
GR-MO3042
Cabinet30 × 42 × 12
Door14 3/4 × 21 1/4 × 3/4

Opening Dimensions: 27 W x 18 1/2 H

Refrigerator Wall Cabinet Double doors

30"W

GR-W301224
Cabinet30 × 12 × 24
Door14 3/4 × 11 × 3/4
GR-W301524
Cabinet30 × 15 × 24
Door14 3/4 × 14 × 3/4
GR-W301824
Cabinet30 × 18 × 24
Door14 3/4 × 17 × 3/4

No Shelf

Refrigerator Wall Cabinet Double doors

24"H

GR-W302424
Cabinet30 × 24 × 24
Door14 3/4 × 23 × 3/4
GR-W332424
Cabinet33 × 24 × 24
Door16 1/4 × 23 × 3/4
GR-W362424
Cabinet36 × 24 × 24
Door17 3/4 × 23 × 3/4

One adjustable shelf

Refrigerator Wall Cabinet Double doors

33"W

GR-W331224
Cabinet33 × 12 × 24
Door16 1/4 × 11 × 3/4
GR-W331524
Cabinet33 × 15 × 24
Door16 1/4 × 14 × 3/4
GR-W331824
Cabinet33 × 18 × 24
Door16 1/4 × 17 × 3/4

No Shelf

Refrigerator Wall Cabinet Double doors

36"W

GR-W361224
Cabinet36 × 12 × 24
Door17 3/4 × 11 × 3/4
GR-W361524
Cabinet36 × 15 × 24
Door17 3/4 × 14 × 3/4
GR-W361824
Cabinet36 × 18 × 24
Door17 3/4 × 17 × 3/4

No Shelf

Wall Easy Reach Corner Cabinet

24"W

GR-WER2430
Cabinet24 × 30 × 12
Door10 5/8 × 29 × 3/4
GR-WER2436
Cabinet24 × 36 × 12
Door10 5/8 × 35 × 3/4
GR-WER2442
Cabinet24 × 42 × 12
Door10 5/8 × 41 × 3/4

Plate Rack w 10 Plate Slots

15"H

GR-PR3015
Cabinet30 × 15 × 12

10 plate slots

Wall Spice Drawer

6"H

GR-WSD630
Cabinet30 × 6 × 12

5 drawers

Wine Rack

30"W

GR-WRC3015
Cabinet30 × 15 × 12
GR-WRC3018
Cabinet30 × 18 × 12

Can install vertically or horizontally

Wine Rack

30"H

GR-WRC2430
Cabinet24 × 30 × 12

Can install vertically or horizontally

Open End Shelf

6"W

GR-OE630
Cabinet6 × 30 × 12
GR-OE636
Cabinet6 × 36 × 12
GR-OE642
Cabinet6 × 42 × 12

Matching color interior

Wall Tower Cabinet

GR-WD1848
Cabinet18 × 48 × 12
Door17 1/2 × 29 × 3/4
Drawer: W 17 1/2, H 8 3/4, D 3/4
GR-WD1854
Cabinet18 × 54 × 12
Door17 1/2 × 35 × 3/4
Drawer: W 17 1/2, H 8 3/4, D 3/4
GR-WD1860
Cabinet18 × 60 × 12
Door17 1/2 × 41 × 3/4
Drawer: W 17 1/2, H 8 3/4, D 3/4

Base Cabinets 54 sizes

Base Cabinet Single Door

GR-B12
Cabinet12 × 34 1/2 × 24
Door11 1/2 × 22 1/2 × 3/4
Drawer: W 11 1/2, H 6 1/4, D 3/4
GR-B15
Cabinet15 × 34 1/2 × 24
Door14 1/2 × 22 1/2 × 3/4
Drawer: W 14 1/2, H 6 1/4, D 3/4
GR-B18
Cabinet18 × 34 1/2 × 24
Door17 1/2 × 22 1/2 × 3/4
Drawer: W 17 1/2, H 6 1/4, D 3/4
GR-B21
Cabinet21 × 34 1/2 × 24
Door20 1/2 × 22 1/2 × 3/4
Drawer: W 20 1/2, H 6 1/4, D 3/4

One drawer

Base Cabinet Double Doors

GR-B24
Cabinet24 × 34 1/2 × 24
Door11 3/4 × 22 1/2 × 3/4
Drawer: W 23 1/2, H 6 1/4, D 3/4
GR-B27
Cabinet27 × 34 1/2 × 24
Door13 1/4 × 22 1/2 × 3/4
Drawer: W 26 1/2, H 6 1/4, D 3/4
⚠ Verify with our team
GR-B30
Cabinet30 × 34 1/2 × 24
Door14 3/4 × 22 1/2 × 3/4
Drawer: W 14 3/4, H 6 1/4, D 3/4
GR-B33
Cabinet33 × 34 1/2 × 24
Door16 1/4 × 22 1/2 × 3/4
Drawer: W 16 1/4, H 6 1/4, D 3/4
GR-B36
Cabinet36 × 34 1/2 × 24
Door17 3/4 × 22 1/2 × 3/4
Drawer: W 17 3/4, H 6 1/4, D 3/4
GR-B42
Cabinet42 × 34 1/2 × 24
Door20 3/4 × 22 1/2 × 3/4
Drawer: W 20 3/4, H 6 1/4, D 3/4

One drawer
Two drawers

Base Cabinet Full Height Single Door

GR-BFH12
Cabinet12 × 34 1/2 × 24
Door11 1/2 × 29 × 3/4
GR-BFH15
Cabinet15 × 34 1/2 × 24
Door14 1/2 × 29 × 3/4
GR-BFH18
Cabinet18 × 34 1/2 × 24
Door17 1/2 × 29 × 3/4
GR-BFH21
Cabinet21 × 34 1/2 × 24
Door20 1/2 × 29 × 3/4

Base Cabinet Full Height Double Door

GR-BFH24
Cabinet24 × 34 1/2 × 24
Door23 1/2 × 29 × 3/4
GR-BFH27
Cabinet27 × 34 1/2 × 24
Door26 1/2 × 29 × 3/4
GR-BFH30
Cabinet30 × 34 1/2 × 24
Door29 1/2 × 29 × 3/4
GR-BFH33
Cabinet33 × 34 1/2 × 24
Door32 1/2 × 29 × 3/4
GR-BFH36
Cabinet36 × 34 1/2 × 24
Door35 1/2 × 29 × 3/4

Two Drawer Base

GR-2DB24
Cabinet24 × 34 1/2 × 24
Top Drawer: W 23 1/4, H 14 3/8, D 3/4; Bottom Drawer: W 23 1/4, H 14 /38, D 3/4
⚠ Verify with our team
GR-2DB30
Cabinet30 × 34 1/2 × 24
Top Drawer: W 29 1/2, H 14 3/8, D 3/4; Bottom Drawer: W 29 1/2, H 14 /38, D 3/4
⚠ Verify with our team
GR-2DB36
Cabinet36 × 34 1/2 × 24
Top Drawer: W 35 1/2, H 14 3/8, D 3/4; Bottom Drawer: W 35 1/2, H 14 /38, D 3/4
⚠ Verify with our team

Three Drawer Base

GR-3DB12
Cabinet12 × 34 1/2 × 24
Top Drawer: W 11 1/2, H 6 1/4, D 3/4; Bottom Drawer: W 11 1/2, H 11 1/8, D 3/4
GR-3DB15
Cabinet15 × 34 1/2 × 24
Top Drawer: W 14 1/2, H 6 1/4, D 3/4; Bottom Drawer: W 14 1/2, H 11 1/8, D 3/4
GR-3DB18
Cabinet18 × 34 1/2 × 24
Top Drawer: W 17 1/2, H 6 1/4, D 3/4; Bottom Drawer: W 17 1/2, H 11 1/8, D 3/4
GR-3DB21
Cabinet21 × 34 1/2 × 24
Top Drawer: W 20 1/2, H 6 1/4, D 3/4; Bottom Drawer: W 20 1/2, H 11 1/8, D 3/4
GR-3DB24
Cabinet24 × 34 1/2 × 24
Top Drawer: W 23 1/2, H 6 1/4, D 3/4; Bottom Drawer: W 23 1/2, H 11 1/8, D 3/4
GR-3DB27
Cabinet27 × 34 1/2 × 24
Top Drawer: W 26 1/2, H 6 1/4, D 3/4; Bottom Drawer: W 26 1/2, H 11 1/8, D 3/4
GR-3DB30
Cabinet30 × 34 1/2 × 24
Top Drawer: W 29 1/2, H 6 1/4, D 3/4; Bottom Drawer: W 29 1/2, H 11 1/8, D 3/4
GR-3DB33
Cabinet33 × 34 1/2 × 24
Top Drawer: W 32 1/2, H 6 1/4, D 3/4; Bottom Drawer: W 32 1/2, H 11 1/8, D 3/4
GR-3DB36
Cabinet36 × 34 1/2 × 24
Top Drawer: W 35 1/2, H 6 1/4, D 3/4; Bottom Drawer: W 35 1/2, H 11 1/8, D 3/4

Document File Base Cabinet

GR-DFB18
Cabinet18 × 29 1/2 × 21
Top Drawer: W 17 1/2, H 6 1/4, D 3/4; Bottom Drawer: W 17 1/2, H 17 1/2, D 3/4

*Hardware not included

Blind Corner Base Cabinet

GR-BBC36
Cabinet33 × 34 1/2 × 24
Door10 × 22 1/2 × 3/4
Drawer: W 10, H 6 1/4, D 3/4; Install range: 36"- 39"
GR-BBC39
Cabinet36 × 34 1/2 × 24
Door12 3/4 × 22 1/2 × 3/4
Drawer: W 12 3/4, H 6 1/4, D 3/4; Install range: 39"- 42"
GR-BBC42
Cabinet39 × 34 1/3 × 24
Door15 3/4 × 22 1/2 × 3/4
Drawer: W 15 3/4, H 6 1/4, D 3/4; Install range: 42"- 45"
⚠ Verify with our team

BBC36 36"-39"
BBC39 39"-42"
BBC42 42'-45'
Top View (inset): Blind Base Cabinet / Filler / Adj Base Cabinet
Must use Filler (Filler not included)

Easy Reach Base Cabinet

GR-ERB33
Cabinet33 × 34 1/2 × 24
Door7 5/8 × 29 × 3/4
GR-ERB36
Cabinet36 × 34 1/2 × 24
Door10 5/8 × 29 × 3/4

One bi-fold door

Base End Cabinet

GR-BEC24
Cabinet24 × 34 1/2 × 24
Door17 1/2 × 29 × 3/4

Both doors operational

Base Tray

GR-BT09
Cabinet9 × 34 1/2 × 24
Door8 1/2 × 29 × 3/4

Sink Base

GR-SB27
Cabinet27 × 34 1/2 × 24
Door13 1/4 × 22 1/2 × 3/4
Drawer: W 26 1/2, H 6 1/4, D 3/4
GR-SB30
Cabinet30 × 34 1/2 × 24
Door14 3/4 × 22 1/2 × 3/4
Drawer: W 14 3/4, H 6 1/4, D 3/4
GR-SB33
Cabinet33 × 34 1/2 × 24
Door16 1/4 × 22 1/2 × 3/4
Drawer: W 16 1/4, H 6 1/4, D 3/4
GR-SB36
Cabinet36 × 34 1/2 × 24
Door17 3/4 × 22 1/2 × 3/4
Drawer: W 17 3/4, H 6 1/4, D 3/4

One dummy drawer
Two dummy drawers

Farmhouse Sink Base

GR-FSB36
Cabinet36 × 34 1/2 × 24
Door17 3/4 × 16 1/2 × 3/4
Sink Trimout: 30"W X 7 1/2"-9"H

Corner Sink Base Cabinet

GR-CSB36
Cabinet36 × 34 1/2 × 24
Door15 1/4 × 22 1/4 × 3/4
Drawer: W 15 1/4, H 6 1/4, D 3/4

One dummy drawer

Corner Sink Base Floor

GR-SBF4242
Cabinet42 × — × —
Table has a W column only (no H or D column printed)

Corner Sink Base Front

GR-DCSF42
Cabinet26 1/4 × 30 × 3//4
Door11 3/4 × 22 1/2 × 3/4
⚠ Verify with our team

For use with SBF4242

Base Waste Basket Cabinet

GR-BWB18
Cabinet18 × 34 1/2 × 24
Top Drawer: W 17 1/2, H 6 1/4, D 3/4; Bottom Drawer: W 17 1/2, H 22 1/2, D 3/4

Trash can is not included, it can be order separately

Microwave Base Cabinet

GR-MB30
Cabinet30 × 34 1/2 × 24
Drawer: W 29 1/2, H 10 1/2, D 3/4; Opening Dimensions: 27"W x 17"H
GR-MB33
Cabinet33 × 34 1/2 × 24
Drawer: W 32 1/2, H 10 1/2, D 3/4; Opening Dimensions: 30"W x 17"H

Spice Bull Base Cabinet

GR-SPB6
Cabinet6 × 34 1/2 × 24
Drawer: W 5 1/2, H 29, D 3/4
GR-SPB9
Cabinet9 × 34 1/2 × 24
Drawer: W 8 1/2, H 29, D 3/4

Shelves are Fixed Assembled (not adjustable)

Base Spice Drawer

GR-BSDC6
Cabinet12 × 34 1/2 × 24

Natural interior finish

Base End Shelf

GR-BES12
Cabinet12 × 34 1/2 × 24

Tall & Pantry Cabinets 15 sizes

Utility Pantry

18"W

GR-U188424
Cabinet18 × 84 × 24
Door17 1/2 × 29 × 3/4
Top Door: 17 1/2 x 29 x 3/4; Drawer: 17 1/2 x 49 1/4 x 3/4
GR-U189024
Cabinet18 × 90 × 24
Door17 1/2 × 35 × 3/4
Top Door: 17 1/2 x 35 x 3/4; Drawer: 17 1/2 x 49 1/4 x 3/4
GR-U189624
Cabinet18 × 96 × 24
Door17 1/2 × 41 × 3/4
Top Door: 17 1/2 x 41 x 3/4; Drawer: 17 1/2 x 49 1/4 x 3/4

Two doors
Two adjustable top shelves
Three bottom shelves
Note: Roll out shelf kits available

Utility Pantry

24"W

GR-U248424
Cabinet24 × 84 × 24
Door11 3/4 × 29 × 3/4
Top Door: 11 3/4 x 29 x 3/4; Drawer: 11 3/4 x 49 1/4 x 3/4
GR-U249024
Cabinet24 × 90 × 24
Door11 3/4 × 35 × 3/4
Top Door: 11 3/4 x 35 x 3/4; Drawer: 11 3/4 x 49 1/4 x 3/4
GR-U249624
Cabinet24 × 96 × 24
Door11 3/4 × 41 × 3/4
Top Door: 11 3/4 x 41 x 3/4; Drawer: 11 3/4 x 49 1/4 x 3/4

Four doors
Two adjustable top shelves
Three bottom shelves
Note: Roll out shelf kits available

Utility Pantry

30"W

GR-U308424
Cabinet30 × 84 × 24
Door14 3/4 × 29 × 3/4
Door row printed as 'Top Door'. Drawer: 14 3/4 W x 49 1/4 H x 3/4 D
GR-U309024
Cabinet30 × 90 × 24
Door14 3/4 × 35 × 3/4
Door row printed as 'Top Door'. Drawer: 14 3/4 W x 49 1/4 H x 3/4 D
GR-U309624
Cabinet30 × 96 × 24
Door14 3/4 × 41 × 3/4
Door row printed as 'Top Door'. Drawer: 14 3/4 W x 49 1/4 H x 3/4 D
⚠ Verify with our team

Four doors
Two adjustable top shelves
Three bottom shelves
Note: Roll out shelf kits available

Oven Pantry

30"W

GR-O308424
Cabinet30 × 84 × 24
Door14 3/4 × 17 × 3/4
Drawer: 29 1/2 W x 7 3/4 H x 3/4 D. Opening Dimensions: 24 W x 24 3/8 H
GR-O309024
Cabinet30 × 90 × 24
Door14 3/4 × 23 × 3/4
Drawer: 29 1/2 W x 7 3/4 H x 3/4 D. Opening Dimensions: 24 W x 24 3/8 H
GR-O309624
Cabinet30 × 96 × 24
Door14 3/4 × 29 × 3/4
Drawer: 29 1/2 W x 7 3/4 H x 3/4 D. Opening Dimensions: 24 W x 24 3/8 H

Two doors
One large open shelf
Three bottom drawers
Note: Drawers may be removed to accommodate double ovens

Oven Pantry

33"W

GR-O338424
Cabinet33 × 84 × 24
Door16 1/4 × 17 × 3/4
Drawer: 32 1/2 W x 7 3/4 H x 3/4 D. Opening Dimensions: 27 W x 24 3/8 H
GR-O339024
Cabinet33 × 90 × 24
Door16 1/4 × 23 × 3/4
Drawer: 32 1/2 W x 7 3/4 H x 3/4 D. Opening Dimensions: 27 W x 24 3/8 H
GR-O339624
Cabinet33 × 96 × 24
Door16 1/4 × 29 × 3/4
Drawer: 32 1/2 W x 7 3/4 H x 3/4 D. Opening Dimensions: 27 W x 24 3/8 H

Two doors
One large open shelf
Three bottom drawers
Note: Drawers may be removed to accommodate double ovens

Vanity Cabinets 19 sizes

Vanity Sink Base

GR-VS24
Cabinet24 × 34 1/2 × 21
Door11 3/4 × 22 1/2 × 3/4
Drawer: 23 1/4 W x 6 1/4 H x 3/4 D
GR-VS27
Cabinet27 × 34 1/2 × 21
Door13 1/4 × 22 1/3 × 3/4
Drawer: 26 1/2 W x 6 1/4 H x 3/4 D. Door H prints '22 1/3' (verified at 8x zoom; probable
⚠ Verify with our team
GR-VS30
Cabinet30 × 34 1/2 × 21
Door14 3/4 × 22 1/2 × 3/4
Drawer: 14 3/4 W x 6 1/4 H x 3/4 D
GR-VS33
Cabinet33 × 34 1/2 × 21
Door16 1/4 × 22 1/2 × 3/4
Drawer: 16 1/4 W x 6 1/4 H x 3/4 D
GR-VS36
Cabinet36 × 34 1/2 × 21
Door17 3/4 × 22 1/2 × 3/4
Drawer: 17 3/4 W x 6 1/4 H x 3/4 D

One dummy drawer
Two dummy drawers

Vanity Drawer Base Cabinet

GR-3VDB12
Cabinet12 × 34 1/2 × 21
Top Drawer: 11 1/2 W x 6 1/4 H x 3/4 D. Bottom Drawer: 11 1/2 W x 11 1/8 H x 3/4 D
GR-3VDB15
Cabinet15 × 34 1/2 × 21
Top Drawer: 14 1/2 W x 6 1/4 H x 3/4 D. Bottom Drawer: 14 1/2 W x 11 1/8 H x 3/4 D
GR-3VDB18
Cabinet18 × 34 1/2 × 21
Top Drawer: 17 1/2 W x 6 1/4 H x 3/4 D. Bottom Drawer: 17 1/2 W x 11 1/8 H x 3/4 D
GR-3VDB21
Cabinet21 × 34 1/2 × 21
Top Drawer: 20 1/2 W x 6 1/4 H x 3/4 D. Bottom Drawer: 20 1/2 W x 11 1/8 H x 3/4 D
GR-3VDB24
Cabinet24 × 34 1/2 × 21
Top Drawer: 23 1/2 W x 6 1/4 H x 3/4 D. Bottom Drawer: 23 1/2 W x 11 1/8 H x 3/4 D

Vanity Combo

GR-VSD36
Cabinet36 × 34 1/2 × 21
Door17 3/4 × 22 1/2 × 3/4
Outside Drawer: 10 1/4 W x 6 1/4 H x 3/4 D; Center Drawer: 14 1/2 W x 6 1/4 H x 3/4 D
GR-VSD42
Cabinet42 × 34 1/2 × 21
Door20 3/4 × 22 1/2 × 3/4
Outside Drawer: 11 1/2 W x 6 1/4 H x 3/4 D; Center Drawer: 18 W x 6 1/4 H x 3/4 D
GR-VSD48
Cabinet48 × 34 1/2 × 21
Door23 3/4 × 22 1/2 × 3/4
Outside Drawer: 14 1/2 W x 6 1/4 H x 3/4 D; Center Drawer: 18 W x 6 1/4 H x 3/4 D
GR-V3021DL
Cabinet30 × 34 1/2 × 21
Door17 1/2 × 22 1/2 × 3/4
Long Drawer: 17 1/2 W x 6 1/4 H x 3/4 D; Top Drawer: 11 1/2 W x 6 1/4 H x 3/4 D; Bottom Drawer: 11 1/2 W x 11 1/8 H x 3/4 D
GR-V3021DR
Cabinet30 × 34 1/2 × 21
Door17 1/2 × 22 1/2 × 3/4
Long Drawer: 17 1/2 W x 6 1/4 H x 3/4 D; Top Drawer: 11 1/2 W x 6 1/4 H x 3/4 D; Bottom Drawer: 11 1/2 W x 11 1/8 H x 3/4 D
GR-V3321DL
Cabinet33 × 34 1/2 × 21
Door20 1/2 × 22 1/2 × 3/4
Long Drawer: 20 1/2 W x 6 1/4 H x 3/4 D; Top Drawer: 11 3/4 W x 6 1/4 H x 3/4 D; Bottom Drawer: 11 3/4 W x 11 1/8 H x 3/4 D
GR-V3321DR
Cabinet33 × 34 1/2 × 21
Door20 1/2 × 22 1/2 × 3/4
Long Drawer: 20 1/2 W x 6 1/4 H x 3/4 D; Top Drawer: 11 3/4 W x 6 1/4 H x 3/4 D; Bottom Drawer: 11 3/4 W x 11 1/8 H x 3/4 D
GR-V3621DL
Cabinet36 × 34 1/2 × 21
Door11 3/4 × 22 1/2 × 3/4
Long Drawer: 23 1/2 W x 6 1/4 H x 3/4 D; Top Drawer: 11 1/2 W x 6 1/4 H x 3/4 D; Bottom Drawer: 11 1/2 W x 11 1/8 H x 3/4 D
GR-V3621DR
Cabinet36 × 34 1/2 × 21
Door11 3/4 × 22 1/2 × 3/4
Long Drawer: 23 1/2 W x 6 1/4 H x 3/4 D; Top Drawer: 11 1/2 W x 6 1/4 H x 3/4 D; Bottom Drawer: 11 1/2 W x 11 1/8 H x 3/4 D

V3021 DL: 30" combo with drawers on left
V3021 DR: 30" combo with drawers on right
V3321 DL: 33" combo with drawers on left
V3321 DR: 33" combo with drawers on right
V3621 DL: 36" combo with drawers on left
V3621 DR: 36" combo with drawers on right

Accessories & Molding 65 sizes

Wood Tray / Chrome Tray

GR-Wood Tray
GR-Chrome Tray 33
GR-Chrome Tray 36

Add to ERB for Lazy Susan
** NOTE: Wood tray does not have a pole included in the middle
Wood Tray *** Can be used in frameless line. Fits both 33" and 36"
Trays are shelf mounted

Furniture Base

GR-FBM
Cabinet96 × — × —

Cove Crown Moulding

GR-COV
Cabinet96 × — × —

Decorative Moulding

GR-BCM8(DCM)
Cabinet96 × — × —

Crown Moulding

GR-CM8
Cabinet96 × — × —

Inset Crown Moulding

GR-RCM4S(LCM)
Cabinet96 × — × —

Angle Crown Moulding

GR-ACM8
Cabinet96 × — × —

Angle Light Rail Moulding

GR-ALRM8
Cabinet96 × — × —

Light Rail Moulding

GR-LRM8
Cabinet96 × — × —

Outside Corner Moulding

GR-OCM8
Cabinet96 × — × —

Shoe Moulding

GR-SHM
Cabinet96 × — × —

Scribe Moulding

GR-SM8(SCR)
Cabinet96 × — × —

Batten Moulding

GR-BAM
Cabinet96 × — × —

Toe Kick

GR-TKC
Cabinet96 × — × —

Filler

GR-F342
Cabinet42 × — × —
GR-F642
Cabinet42 × — × —

Tall Filler

GR-F396
Cabinet96 × — × —
GR-F696
Cabinet96 × — × —

Finish Plywood Panel

GR-FPV4296
Cabinet96 × — × —

Note: Edges are not finished

Tall Skin Veneer Panel

GR-USV2496
Cabinet96 × — × —

Note: Edges are not finished
Available in the Double Shaker and Charm collections, excluding NB

Base Skin Veneer Panel

GR-BSV
Cabinet— × 34 1/2 × —

Note: Edges are not finished
Available in the Double Shaker and Charm collections, excluding NB

Wall Skin Panel

GR-WSV24
Cabinet— × 24 × —
GR-WSV30
Cabinet— × 30 × —
GR-WSV36
Cabinet— × 36 × —
GR-WSV42
Cabinet— × 42 × —

Note: Edges are not finished

Dishwasher Return Panel

GR-DWR3
Cabinet— × 34 1/2 × —

Note: Edges are not finished

Refrigerator End Panel

GR-REPV2496
Cabinet— × 96 × —
GR-REPV2796
Cabinet— × 96 × —

Note: Edges are not finished

Tall Decorative Door Panel

GR-TDEP2484
Cabinet— × 78 1/2 × —
GR-TDEP2490
Cabinet— × 84 1/2 × —
GR-TDEP2496
Cabinet— × 90 1/2 × —

Wall Decorative Door Panel

GR-WDEP30
Cabinet— × 29 × —
GR-WDEP36
Cabinet— × 35 × —
GR-WDEP42
Cabinet— × 41 × —

Base Decorative Door Panel

GR-BDEP
Cabinet— × 29 × —

Shelf Board

GR-S2496
Cabinet— × 96 × —
GR-Shelf Board W
Cabinet36 × — × —
GR-Shelf Board B
Cabinet48 × — × —

Banded on both edges
Finished on all 4 sides
Color to match cabinet
Shelf Interior W
Shelf Interior B
Natural color finish that matches the interior

Vanity Decorative Door Panel

GR-VDEP
Cabinet— × 29 × —

Skin Panel - Interior

GR-Skin Panel - Interior
Cabinet48 × 48 × 1/4

Natural color finish that matches the interior

Trash Bin

GR-Trash Bin

35-Quart Trash Can (8.75 Gallons)

Sample Door - Display

GR-Sample Door - Display
Cabinet22 13/16 × 30 1/16 × 10 1/4
Dimensions read from diagram (no table dims printed)

Sample Door

GR-SD
Cabinet11 × 15 × 3/4
Dimensions read from diagram (no table dims printed)

Corbel

GR-CB9
Cabinet9 × 9 × 3
Dimensions from diagram (table lists item code only)
GR-CBT
Cabinet5 7/8 × 13 1/16 × 3
Dimensions from diagram (table lists item code only)

Classic Decorative Leg

GR-CLDL
Cabinet3 × 34 1/2 × 3
Dimensions from diagram (table lists item code only)

Fluted Decorative Leg

GR-FLDL
Cabinet3 × 34 1/2 × 3
Dimensions from diagram (table lists item code only)

Glass Holder

GR-SGH30
Cabinet30 × 1 1/2 × 12
Dimensions from diagram (table lists item code only)

Knee Drawer

GR-VKD36
Cabinet36 × 7 × 21
Dimensions from diagram (table lists item code only); diagram also shows 23 1/2" interior box width and 6" drawer-box height

Max trim to 30"
Interior Drawer Dimensions 3"1/2 x 18"1/4 x 20 1/4

Arched Valance

GR-VA30
Cabinet30 × 6 × 3/4
GR-VA36
Cabinet36 × 6 × 3/4
GR-VA42
Cabinet42 × 6 × 3/4
GR-VA48
Cabinet48 × 6 × 3/4

3/4" thickness
Diagram labels: 30" 36" 42" or 48" wide; 6" end height; 3" at arch center

Roll Out Tray

GR-RS18
Cabinet— × 3 1/4 × 21
Depth 21" and 3 1/4" side height from diagram; per-code width not printed in table
GR-RS21
Cabinet— × 3 1/4 × 21
Depth 21" and 3 1/4" side height from diagram; per-code width not printed in table
GR-RS24
Cabinet— × 3 1/4 × 21
Depth 21" and 3 1/4" side height from diagram; per-code width not printed in table
GR-RS27
Cabinet— × 3 1/4 × 21
Depth 21" and 3 1/4" side height from diagram; per-code width not printed in table
GR-RS30
Cabinet— × 3 1/4 × 21
Depth 21" and 3 1/4" side height from diagram; per-code width not printed in table
GR-RS33
Cabinet— × 3 1/4 × 21
Depth 21" and 3 1/4" side height from diagram; per-code width not printed in table
GR-RS36
Cabinet— × 3 1/4 × 21
Depth 21" and 3 1/4" side height from diagram; per-code width not printed in table

Note: Natural finish. Side mount only. Full-extensioin, not self-closing
3/4" thickness
Diagram labels: 21" deep; widths 14" 17" 20" 23" 26" 29" or 32"; 3 1/4" side height (table does not print a per-code width mapping)

Floating Shelf

GR-FS24
Cabinet24 × 2 3/16 × 12
L column = 24; 12" depth and 2 3/16" thickness from diagram
GR-FS30
Cabinet30 × 2 3/16 × 12
L column = 30; 12" depth and 2 3/16" thickness from diagram
GR-FS36
Cabinet36 × 2 3/16 × 12
L column = 36; 12" depth and 2 3/16" thickness from diagram

Diagram labels: 12" deep; 2 3/16" thick; lengths 24", 30", 36"

Other Premium Line finishes

Same sizes and construction — different door and color.

See Shaker Gray in person

Open a drawer, swing a door, compare it side by side — 5601 Bandera Rd, Suite 100, San Antonio.
Bring your measurements and we'll send a free itemized quote.

Get a free quote (210) 773-2799
